Axiom Supply Lifetime Warranty Wheel Bearing Assembly GM 1500 6 Lug Truck Silverado / Sierra 2007 - 2013

Features

Precision Tapered Roller Bearings – Engineered with high-performance grease for smooth, maintenance-free operation.

Premium Hardware – Grade 10.9 cold-formed, zinc-plated studs deliver exceptional tensile strength and corrosion protection.

Durable ABS Sensor – Built to maintain accurate signal transmission in heat, mud, and moisture.

Versatile Spindle Design – Rolled inner spindle accommodates both 2WD and 4WD systems.

Configuration – 6 × M14-1.50 lug studs.

Description

The Axiom Supply Bearing Assembly is built for professionals who demand reliability from their heavy-duty trucks.

Developed with a proprietary bearing and hub structure, this assembly reduces hub-face deflection under load—ensuring tighter steering response, improved braking stability, and enhanced durability even under the stress of towing, oversized tires, or lifted suspension setups.

Each assembly comes as a complete bolt-in unit, compatible with both left and right spindles. Installation typically takes about 2 hours and requires no special modifications.

Whether your truck works hard on the job site or conquers rough terrain on weekends, Axiom Supply bearing assemblies deliver the strength, precision, and longevity serious truck owners rely on.

Includes

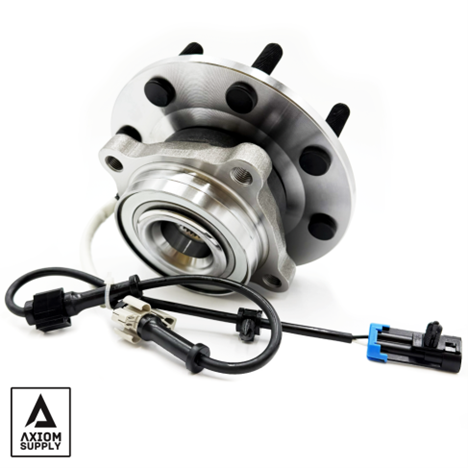

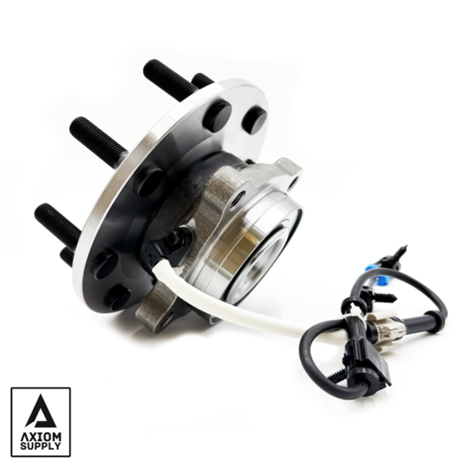

(1) Wheel Bearing & Hub Assembly with integrated ABS wire

Torque Specifications

Axle Nut: 177 lb·ft

Spindle Bolts: 133 lb·ft

Main Caliper Bolts: 125 lb·ft

Interchange

Timken SP500301, SKF BR930661, AcDelco FW303 / FW346, GM OEM 10393171 25918329 25676819, Kryptonite KR6301, AC/Delco 515098A, FW392, Mevotech H515096, Moog Hub Assemblies 515096, Axiom AX515096

The Axiom No-Nonsense Lifetime Warranty

Our suspension and steering components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.

Push it to the limit—we don’t care.
If the part lets you down, we will make it up to you!
